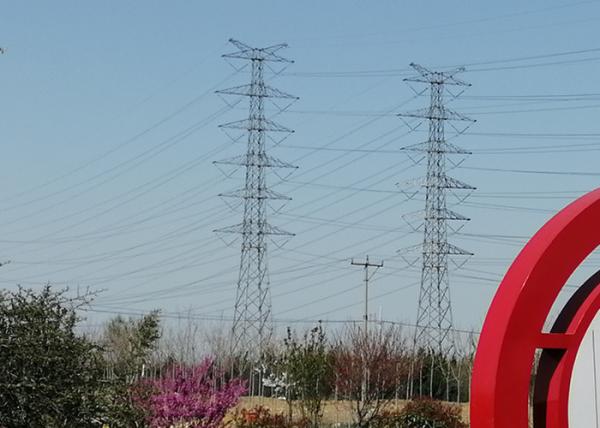

Suspension and Electric Pylon Lattice Steel Tower 220kv Double Circuit Power Transmission Line Steel Tower
1. Production decription
Transmission lattice steel tower voltage up to 1000kv
1. Yearly production capacity of power tower is around 40000 tons
2. strictly production process and quality control during the tower making process
3. Material :S235JR or S355JR
4. Surface :can be galvanization as ASTM123
5. Method of welding :Submerged-arc welded ,Electrical arc welded
6. Package details :use steel wire ,plastic material and another material to protect the key position of the power tower
| Products | Suspension and Electric Pylon Lattice Steel Tower 220kv Double Circuit Power Transmission Line Steel Tower |
| Voltage Grade | 10~1000KV |
| Material | GB/T:Q235B, Q345B, Q420,
ASTM : A36,A572 GR50, GR65,
BS/EN :S355JR,S235JR |
| Height | 8-100m |
| Galvanization | According with Chinese standard GB/T 13912-2002
Which is equal to American standard ASTM A123. |
| Painting | According to clients' request |
| Test | any test as requirement and test before shipment |
| Certificates | ISO9001-2015, ISO14001:2015, OHSAS 45001:2015,SGS |
| Minimum order: | One set |
| Fasteners | Grade 4.8,6.8 ,8.8 or as requirement |
2. Product capacity
We have 5 auto production line for lattice steel towers Manufacturing,We can supply 3000 tons lattice steel tower
every month .Else we have enogh site for installing more production line if needed.
3. Technical support
Our engineer and drawer has lots of designing ,lofting experience of lattice steel towers .
Which we can supply a overall solution of all the towers .
| Service you can get from our engineer | tower design,tower lofting ,tower weight calculation and loading plans |
| Software they used | TTA,STWXP,TMA,LMA,Daoheng |
4. Quality control
We have very strict quality control in every angle steel towers .
Material incoming control:chemical and physical test
Zinc coating thinknes inspection
5. Trial assembly
We usually has two ways of trial assembly for lattice steel towers : trial assembly before galvanzation
and after galvanization.
6. Hot dip galvanization and painting
7. Package and delivery
Package we usually do as our clients requirment .Usually for angle steel towers,We use steel wire to make it into bundle and use special material to protect the Zinc.
8. Company introduction
Qingdao Liangta Steel Structure Co., Ltd. ,established in year 2009,is a leading professional manufacturer in the field of transmission steel towers (the voltage up to 1000kv), telecommunication towers, monopoles, substation structures and rooftop towers. We also supply steel profile products as per customers 'requirement.
The factory located in Jiaozhou bay of Qingdao, covered an area of over 60,000 square meters with an annual production capacity 40,000 tons.
Location:
Less than one hour drive from Qingdao International Airport, 1 hour drive from Qingdao sea port.
• Qualification Certificates:
• -Environmental Management System Certificate: ISO14001:2015
• -Quality Management Systems Certificate: ISO9001:2015
• -Established Occupational Health and Safety Management Systems Certificate: OHSAS 18001:2007
We also have many experiences of foreign projects, like Philippines, Myanmar, Iraq, Mauritania and so on.
Welcome to contact us ,we make sure your every question will be answered in time .
Certificate:
9. Product catalogue:
